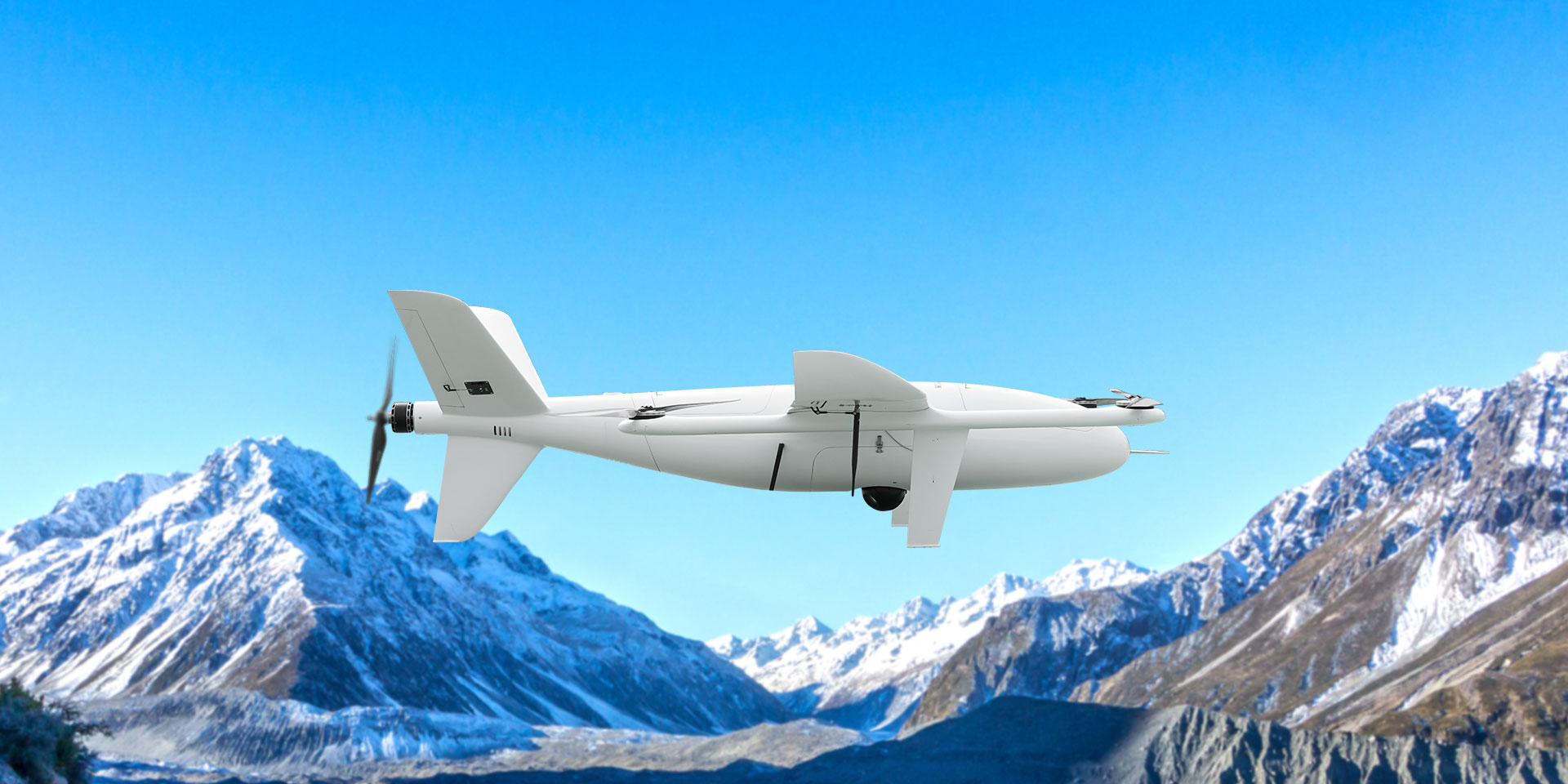

VTOL fixed-wing UAV

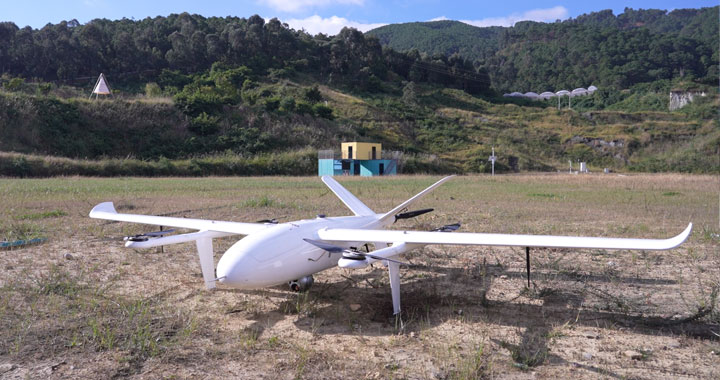

TIM-D35 VTOL fixed-wing UAV adopts a composite wing configuration that combines a fixed wing with four rotors, offering both the convenience of multi-rotor vertical takeoff and landing and the long endurance and range of a fixed-wing aircraft. It can operate smoothly in complex terrain such as mountains, hills, jungles, and densely built-up areas.
Long endurance, long range

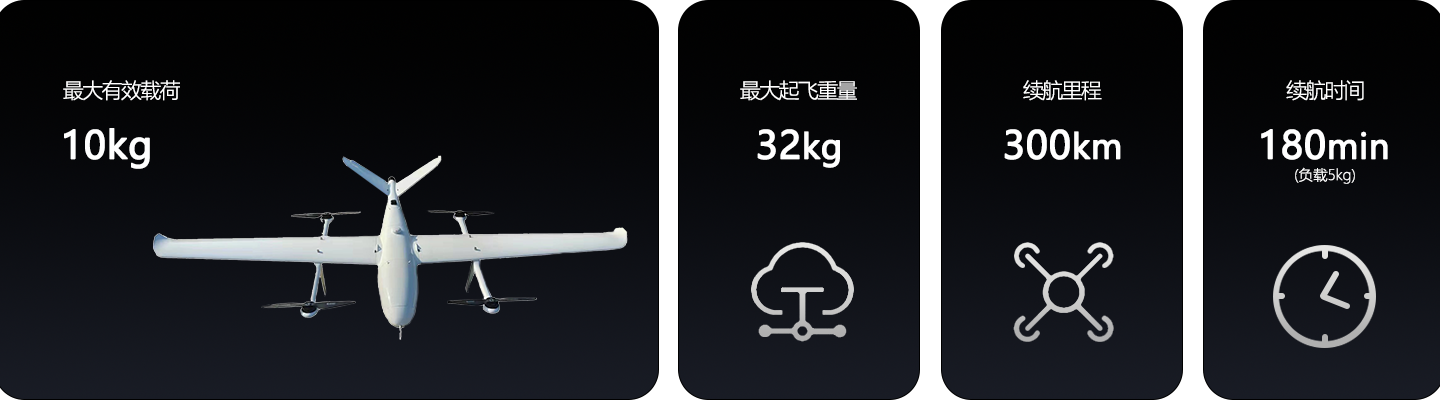

Adopting a carbon fiber integral molding design, it features high strength and light weight. The maximum payload reaches 10 kg, with a payload endurance of over 180 minutes and a range of over 200 km, meeting the requirements for large-scale operations.
Vertical takeoff and landing, no runway required.
It combines the advantages of fixed-wing UAVs — long endurance, high speed, and long range — with the advantages of rotor UAVs, namely vertical takeoff and landing without the need for a runway.
High environmental adaptability
It operates normally at temperatures from -20°C to 45°C and humidity up to 90%, with wind resistance up to 12 m/s. It works stably in various harsh environments such as rain, wind, dust, extreme cold, or heat, enabling all-weather deployment.
High safety

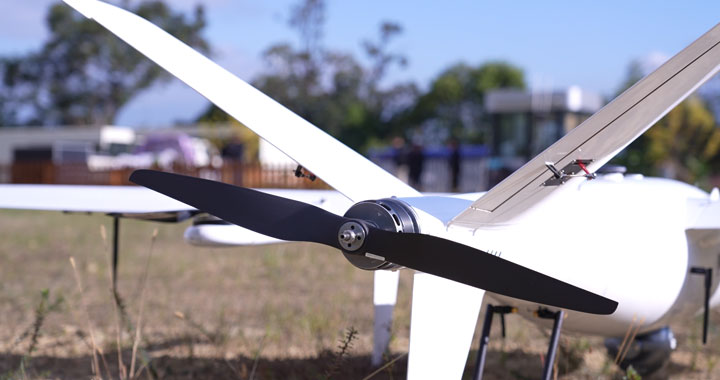

It adopts an electric propulsion system, which is clean, efficient, low-noise, and offers high safety performance.
Centered on industry users, we build an integrated service ecological industry chain for low‑altitude remote sensing, comprising “UAVs + cloud platform + industry applications.
Standard gimbal/payload interface, plug-and-play, providing comprehensive industry UAV application solutions.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Wingspan | 3500mm | Fuselage Length | 1880mm |
| Maximum Effective Payload | 10kg | Maximum Takeoff Weight | 32 kg |
| Range | ≥300km | Endurance | 180min(负载5kg) |
| Maximum Service Ceiling | 5000m | Minimum Turning Radius | 200 m |
| Cruising Speed | 80-110km/h | Wind Resistance | 6-7级 |
| Protection Rating | Moderate Rain | Operating Temperature | -20 ℃ ~ 55℃ |
