TIM- XL185 Tethered UAV
TIM- XL185 Tethered UAV

Long-endurance high-altitude operational capability

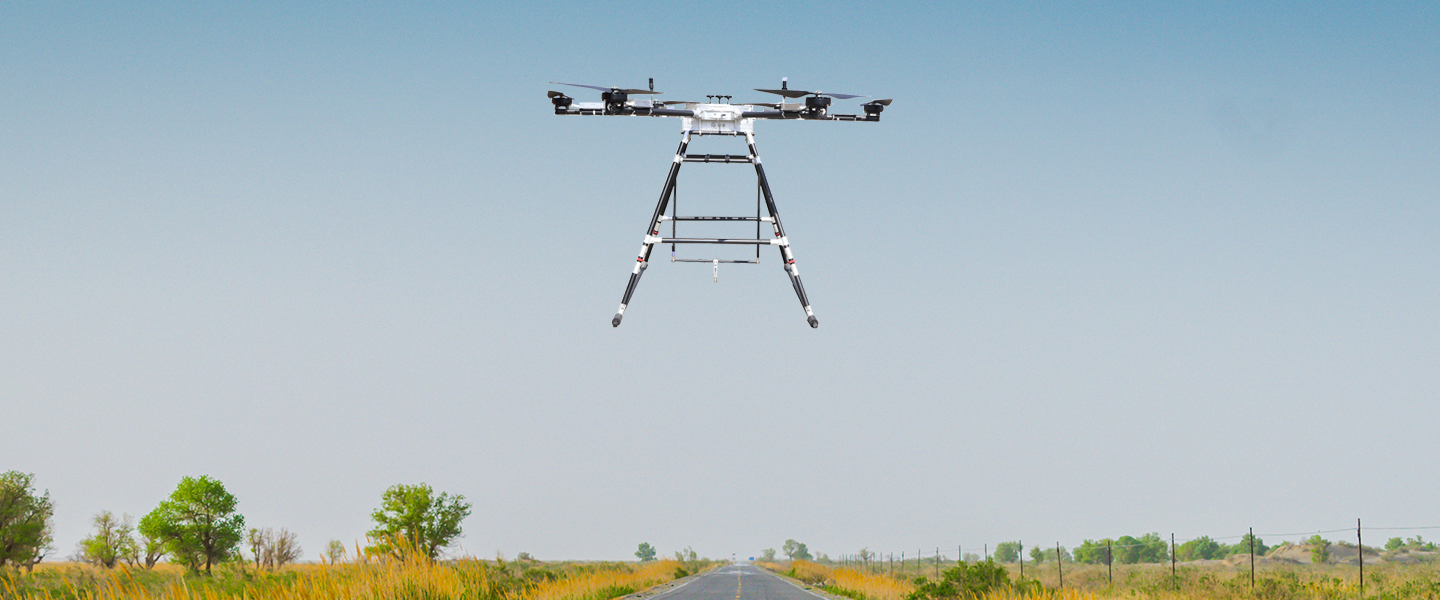

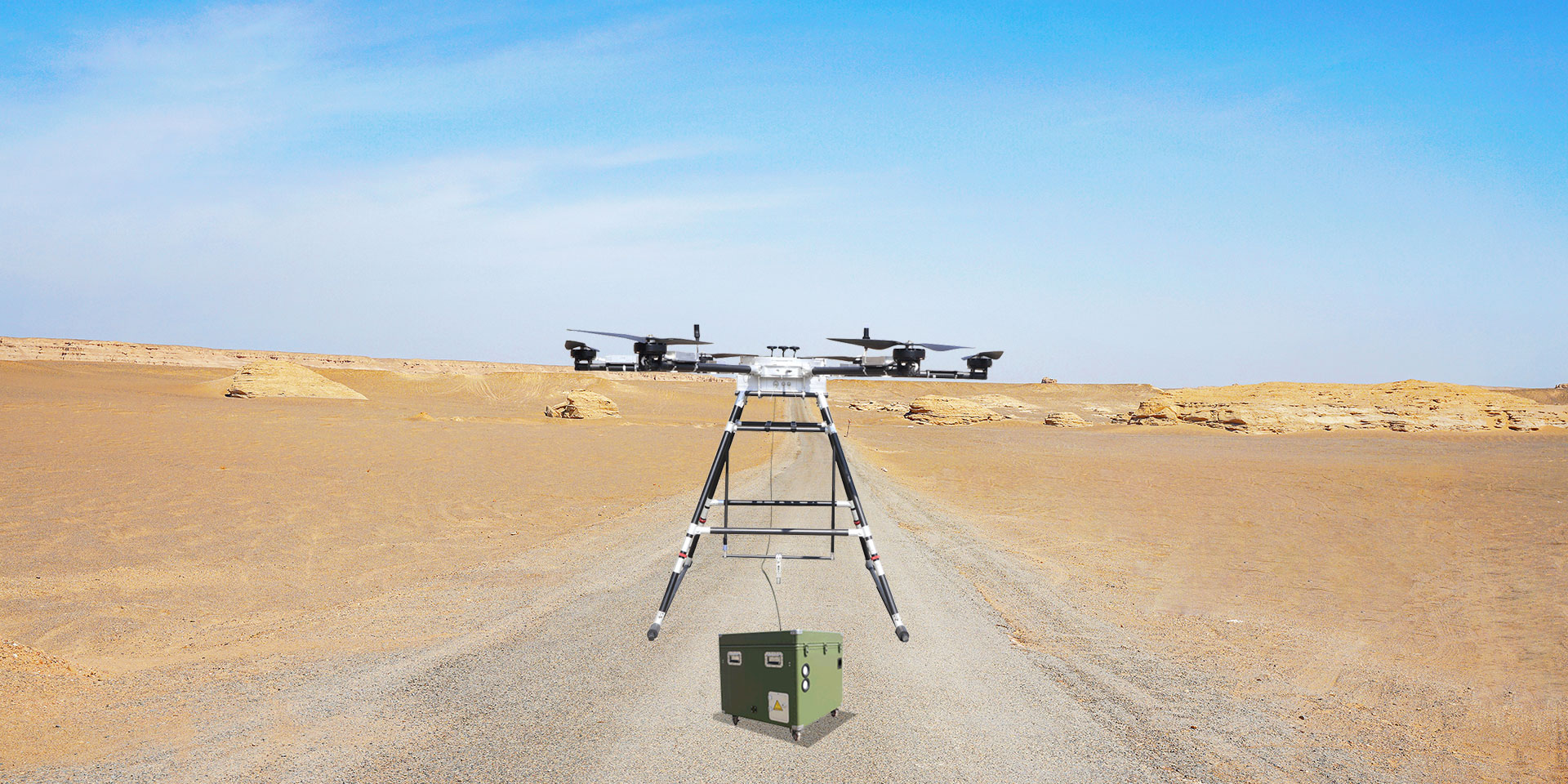

TIM-XL185 Tethered UAV is a professional‑grade tethered hexacopter built with carbon fiber and aviation aluminum. It features a maximum payload of 20 kg, a maximum flight altitude of 150 m, and an endurance of up to 24 hours. The aircraft adopts a foldable design and supports both automatic and manual control modes. It is widely applicable for long‑duration stationary operations such as emergency communication, emergency lighting, and disaster monitoring.


Long endurance and high-altitude operation capability

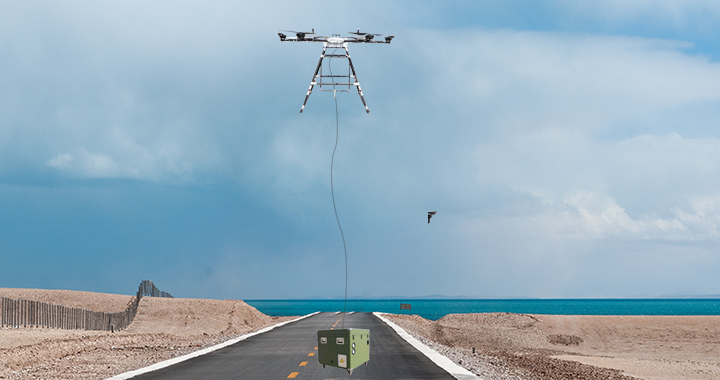

Equipped with a 15 kW tethered power supply system, it supports dual power modes: industrial electricity or generator. Capable of continuous operation at an altitude of 150 meters for 24 hours, it meets the demands of long-duration, high-power missions.



High environmental adaptability

Equipped with an industrial‑grade multi‑IMU flight controller, it features rainproof, moisture‑proof, rust‑proof, and corrosion‑resistant protection. With an operating temperature range of ‑20°C to 55°C and wind resistance up to Beaufort scale 6, it operates stably in variable environments such as rain, wind, extreme temperatures, and coastal areas.


Highly integrated modular professional design

Adopting a quick‑detachable onboard power supply system, it allows integration of ad‑hoc network radios, 4G/5G private networks, and various payloads (e.g., FPV cameras, custom mission payloads) as required. It supports flexible configuration for multiple scenarios and rapid mission switching, enabling “one UAV, multiple uses” across reconnaissance, communication, dropping, and other mission modes, thereby reducing equipment deployment and maintenance costs.


Safe and reliable

Incorporating multiple safety protection mechanisms (low voltage/communication link loss auto‑return, etc.) to ensure high reliability and flight safety in complex missions.

Technical Specifications

Standard gimbal/payload interface, plug-and-play, providing comprehensive industry UAV application solutions.

SpecificationValueSpecificationValue
Wheelbase1884mm Frame ConfigurationFoldable Hexacopter
Propeller Size34 inchFrame MaterialHigh-strength Carbon Fiber + Aviation Aluminum
Motor TypeBrushless DCEndurance24h
Maximum Tethered Altitude150m(负载25Kg)Maximum Payload25kg
Protection RatingModerate RainWind ResistanceLevel 6
