TIM-X260 Firefighting UAV - MULTY-ROTORS UAV - Chengdu Timesky Star Technology Co., Ltd.

High Payload Firefighting UAV

The TIM-X260 is a six-axis, six-rotor electric multi-rotor high-payload UAV platform. Its airframe is made of carbon fiber and aviation-grade aluminum, offering high strength and stable flight performance.

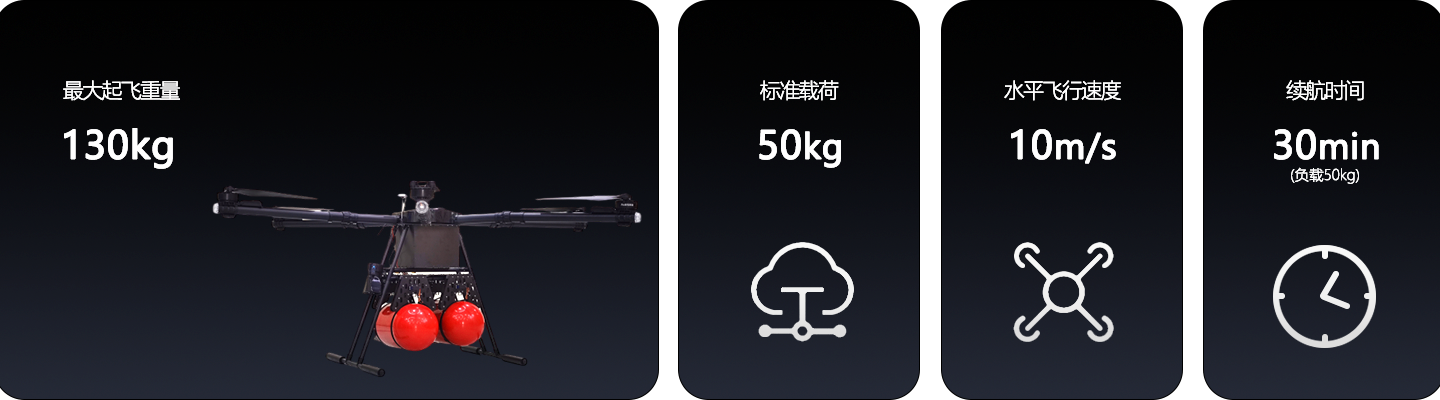

Maximum payload: 70 kg | Endurance with 50 kg payload: >30 min

It is primarily used in firefighting, weapon mounting, cargo transport, and other fields.


High Payload Capacity, Long Endurance

Airframe designed with high-strength carbon fiber, equipped with four battery compartments. No-load endurance: >60 min; maximum takeoff weight: 130 kg. Supports long-duration, wide-area, high-payload operations

Excellent environmental adaptability

It features an IP56 protection rating, allowing operation in moderate rain conditions, with a wind resistance of Beaufort scale 6 and a maximum operating altitude of 4,000 meters. It delivers reliable performance in harsh environments, including extreme cold, high temperatures, wind, rain, and plateau areas, ensuring stable flight even under severe weather and complex terrain conditions.

Quick to stow, easy to assemble, and flexible to deploy.

It adopts a foldable arm design for compact storage, with folded dimensions of 1450 mm × 1300 mm × 960 mm, resulting in lower requirements for transport vehicles.

Optional multi-payload gimbal configuration

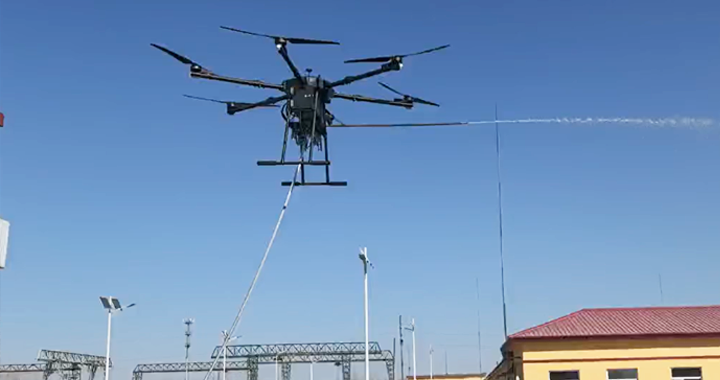

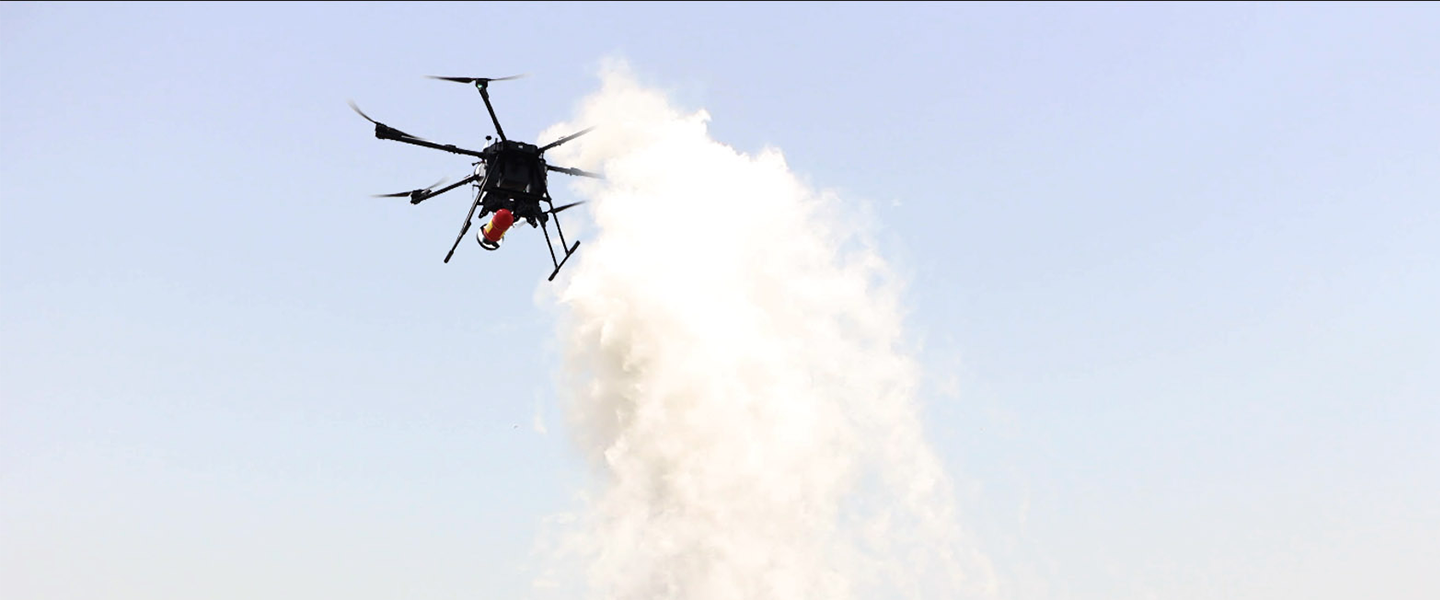

Optional payloads include a 10x optical zoom camera, 25 kg water-based/dry powder fire extinguishing bombs with mounting brackets, and a fire hose adapter, among other diverse mission-specific gimbal and mounting options. With quick-swappable payloads, the platform can seamlessly transition between specialized operation modes such as firefighting, emergency rescue, weapon mounting, and cargo transport, delivering an “all-in-one” versatile solution.
