Inspection | Security | Logistics
-
Forestry丨Surveying & Mapping
-
Fully Automated 24/7 Operations
-
Smart Command & Control Hub

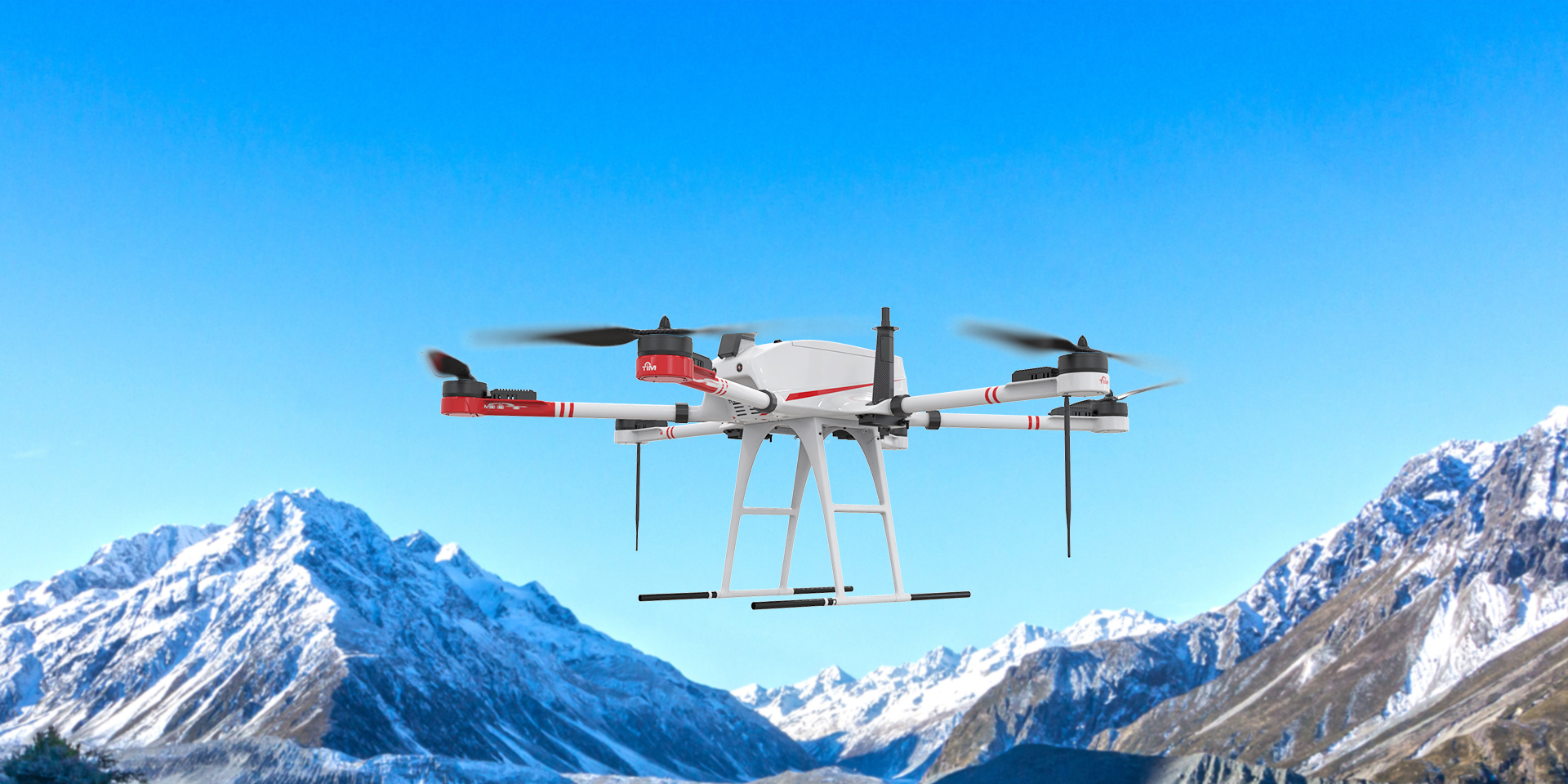

Intelligent Cargo UAV
The TIM-W60 features a carbon fiber integrated molding construction, offering light weight, high strength, and strong corrosion resistance. Powered by a 14S high-performance power system, it achieves a maximum payload capacity of 40 kg. Equipped with the military-grade flight control system and multiple intelligent flight and autonomous safety systems, it can be widely used in urban logistics, material delivery in plateau and mountainous areas, rescue supply delivery, agricultural and forestry transport, and other fields.
High Payload Capacity ＆Long Endurance

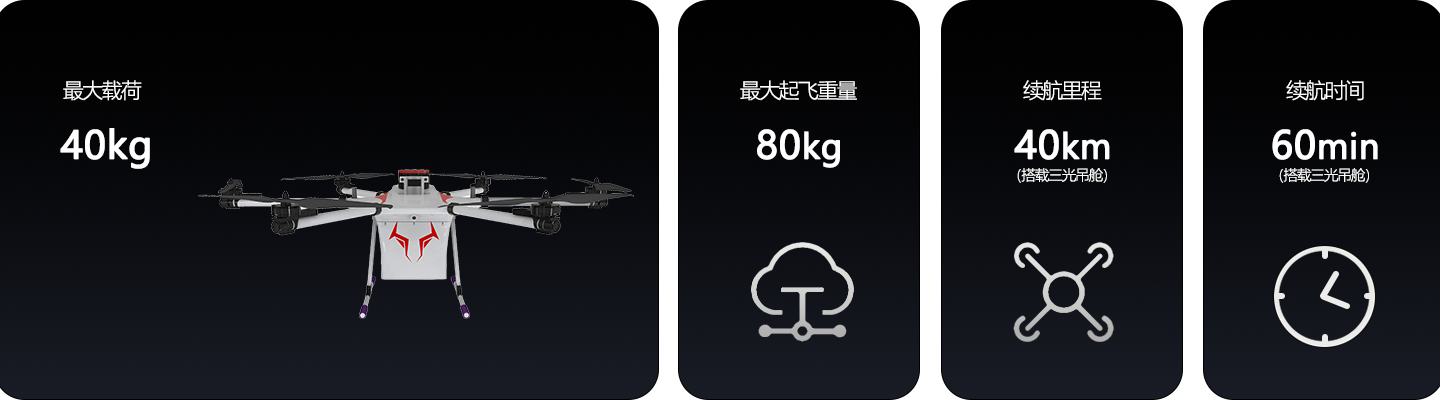

Powered by a 14S high-performance power system, it delivers a maximum payload of 40 kg and a maximum takeoff weight of 80 kg. With a tri-sensor gimbal, it achieves an endurance of up to 60 minutes and a range of up to 40 km.
Excellent environmental adaptability
It can reliably complete missions at an altitude of 4,500 meters in Force 6 winds with moderate rain, delivering stable flight performance and strong environmental adaptability. It is widely applicable in scenarios such as plateaus, mountainous areas, and disaster zones.

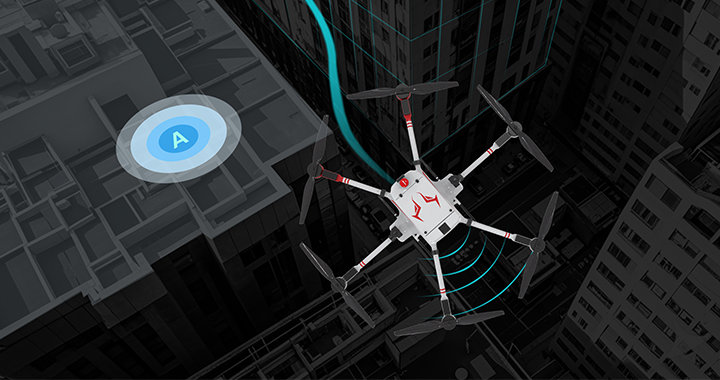

Fully intelligent obstacle avoidance system
Multi-redundant safety system — featuring 360° autonomous obstacle avoidance and autonomous flight along planned routes, enabling intelligent operation that ensures safety and peace of mind.

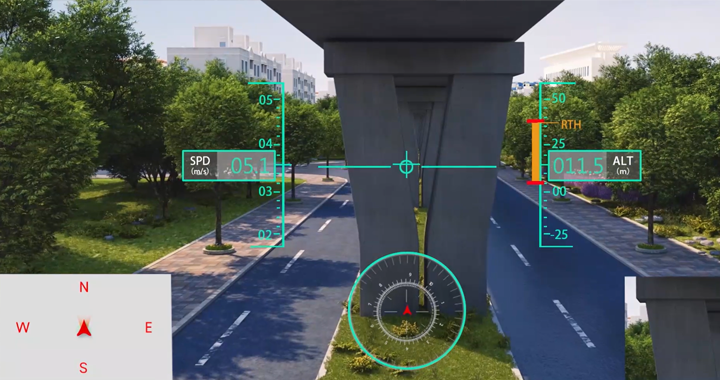

Military-grade flight control enhanced with AI algorithms
The fully self-developed Zhanlang military-grade flight control system, integrated with artificial intelligence modules, delivers functions such as intelligent obstacle avoidance, precise positioning, accurate landing, smart navigation, and intelligent following.
以行业用户为中心，构建“无人机+云平台+行业应用”低空遥感综合服务生态产业链
Standardized payload interface with plug-and-play functionality, delivering comprehensive industry UAV application solutions
| specification | parameter | specification | parameter |
|---|---|---|---|
| Wheelbase | 2000mm | Maximum takeoff weight | 40 kg |
| Maximum payload | 40kg | Endurance | 40min(Standard tri-sensor gimbal) |
| Range | 40km(Standard tri-sensor gimbal) | Data link range | 15 km（Clear line-of-sight without interference） |
| Maximum flight altitude | 2000m | Maximum takeoff altitude | 5000 m |
| Maximum flight speed | 23m/s | Wind resistance | level 6 |
| IP rating | Moderate rain | Operating temperature | -20 ℃ ~ 60℃ |
