Aerial robot equipped with AI algorithms

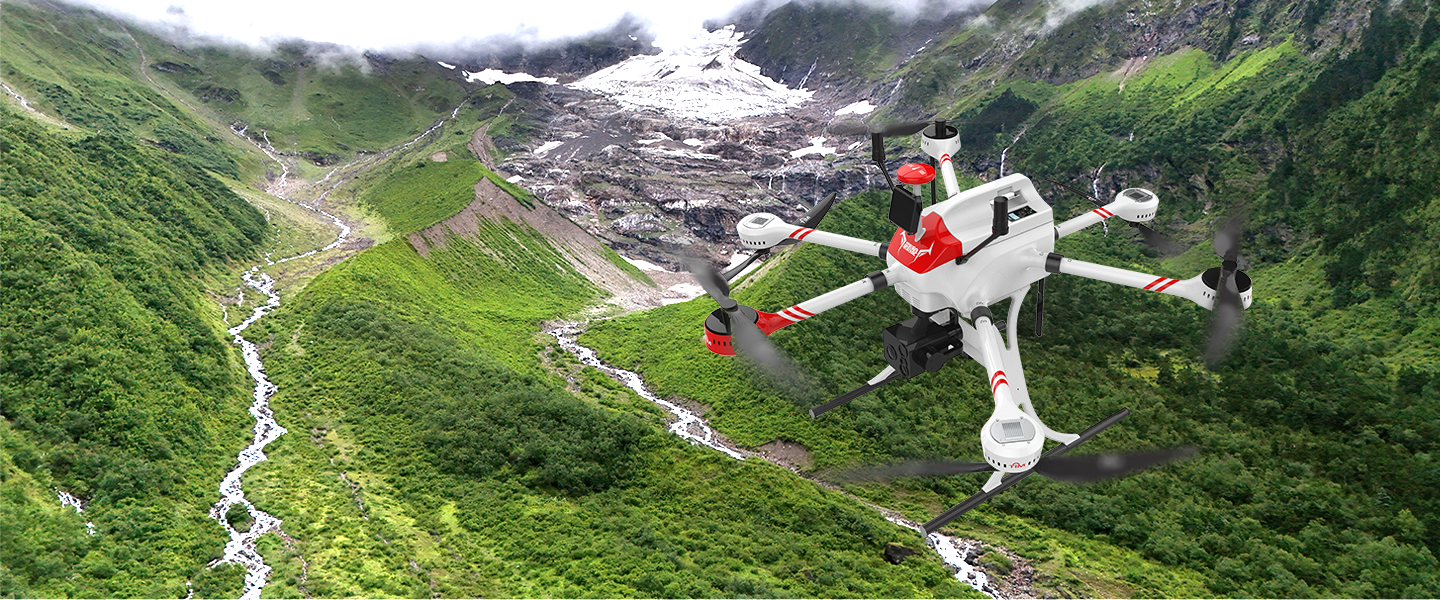

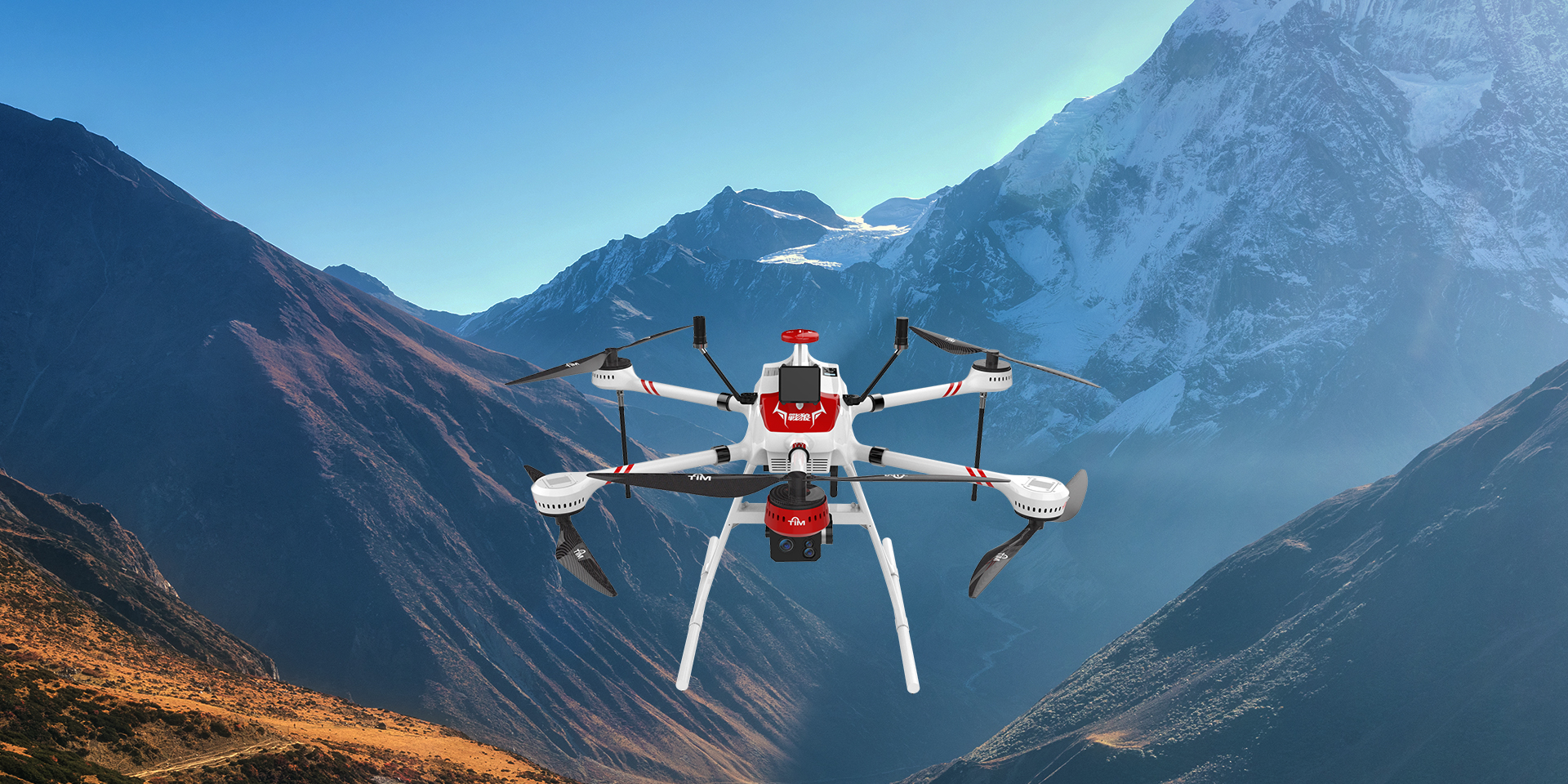

TIM-W20 features an industry-unique non-coplanar staggered wing configuration, making it the intelligent drone with the highest payload capacity and longest endurance among products of the same size. Its flight control algorithm, integrated with artificial intelligence modules, enables functions such as intelligent obstacle avoidance, precise positioning, accurate landing, smart navigation, and intelligent following.
Industry-unique non-coplanar wing configuration

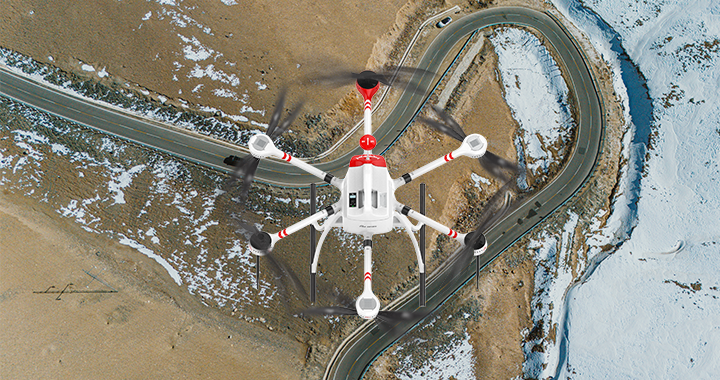

It features an industry-unique non-coplanar staggered structural design, enabling a reduced airframe size, lower drag coefficient, decreased noise, and enhanced payload capacity and endurance.
Quick to stow, easy to assemble, and flexible to deploy
It features foldable arms and quick-release propellers for rapid stowage and assembly, enabling portable individual carrying operation as well as rapid and flexible deployment.
Multiple intelligent application modes

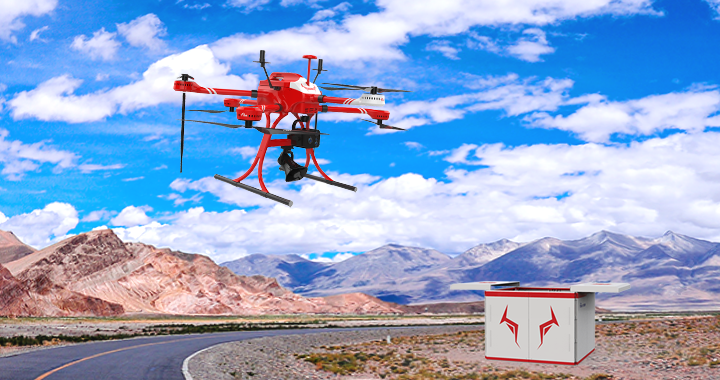

Supports portable back-carry operation, as well as deployment via fixed smart airports or vehicle-mounted smart airports, enabling fully automated unattended operation throughout the entire process.
AI algorithm-enabled military-grade flight control

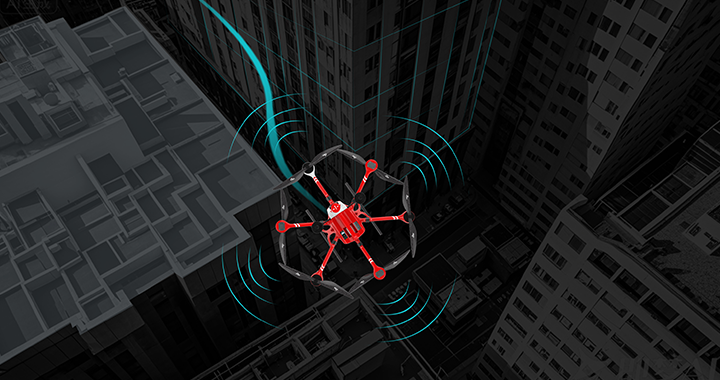

The fully self-developed Zhanlang military-grade flight control system, integrated with artificial intelligence modules, delivers functions such as intelligent obstacle avoidance, precise positioning, accurate landing, smart navigation, and intelligent following.
以行业用户为中心，构建“无人机+云平台+行业应用”低空遥感综合服务生态产业链
Standardized payload interface with plug-and-play functionality, delivering comprehensive industry UAV application solutions.

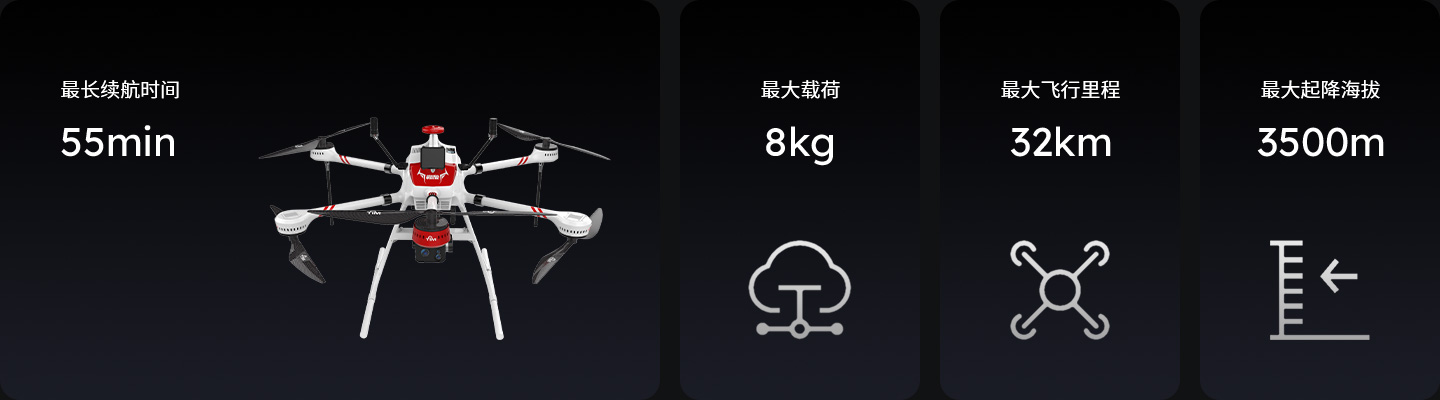

| specification | parameter | specification | parameter |
|---|---|---|---|
| Wingspan | 1730（±5mm) | Maximum takeoff weight | 19.7 kg |
| Maximum payload | 8 kg | Maximum flight speed | 23 m/s |
| Endurance | ≥25min(5kg)，≥45min(Standard tri-sensor gimbal) | Data link range | 20 km（Clear line-of-sight without interference） |
| Range | ≥30km（Standard tri-sensor gimba） | Maximum flight altitude | 4500 m |
| Assembly time | ≤3 min | Wind resistance | level 6-7 |
| IP rating | Moderate rain | Operating temperature | -20 ℃ ~ 55 ℃ |
